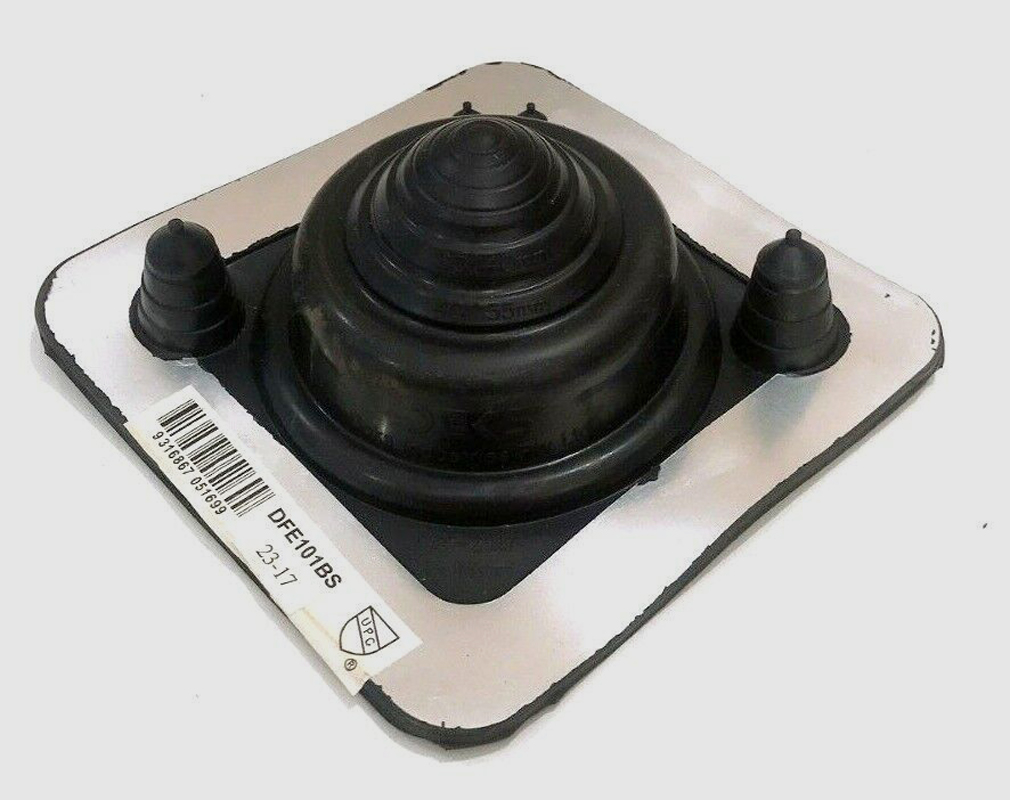

Dektite Solar EPDM

The DEKS™ Dektite Solar  EPDM (DFE101BS) is a premium quality EPDM rubber, rated for up to 115°C. This Dektite comes with two ports suitable for antenna and solar cables with a reinforced aluminium frame around the base, designed to mould to multiple roof profiles. It is UV rated, durable, lead free with minimal tools required for installation allowing 5-55mm penetration.

Dektite polymer flashings have been tested and comply with applicable Australian and New Zealand Standards. For guidance on good flashing design and installation methods, refer to the New Zealand Metal Roof Manufacturers Association Code of Practice and NZBC E2/AS1.

  • Roof Pitch: 0-45˚
  • Penetration range: up to 55mm
  • Application: metal roofs and wall claddings
  • Temperature range: -50˚C to 115˚C
  • Resistance: UV rated
  • Material/Colour: Black EPDM polymer rubber, edged with a corrosion-resistant aluminium band

Dektite polymer flashings have been tested and comply with applicable Australian and New Zealand Standards. For guidance on good flashing design and installation methods, refer to the New Zealand Metal Roof Manufacturers Association Code of Practice and NZBC E2/AS1.

Perfect for flashing pipes on metal roofs. The multi-application flashing in a highly durable EPDM or silicone, edged with a flexible aluminium band, flashes hot or cold flues and pipes on metal roofs. The square base fits any prepared hole on most roof profiles.

Fits flues with an external measurement between 5-55mm. Suitable for roof pitch 0-45 degrees. For use in solar applications.

Brochure

Nominal Pipe Diameter (mm)Base Size (mm)Part NumberMaterial / Colour
0-35101×101DFE100BSEPDM  / Black & Aluminium
5-55139×139DFE101BSEPDM  / Black & Aluminium
