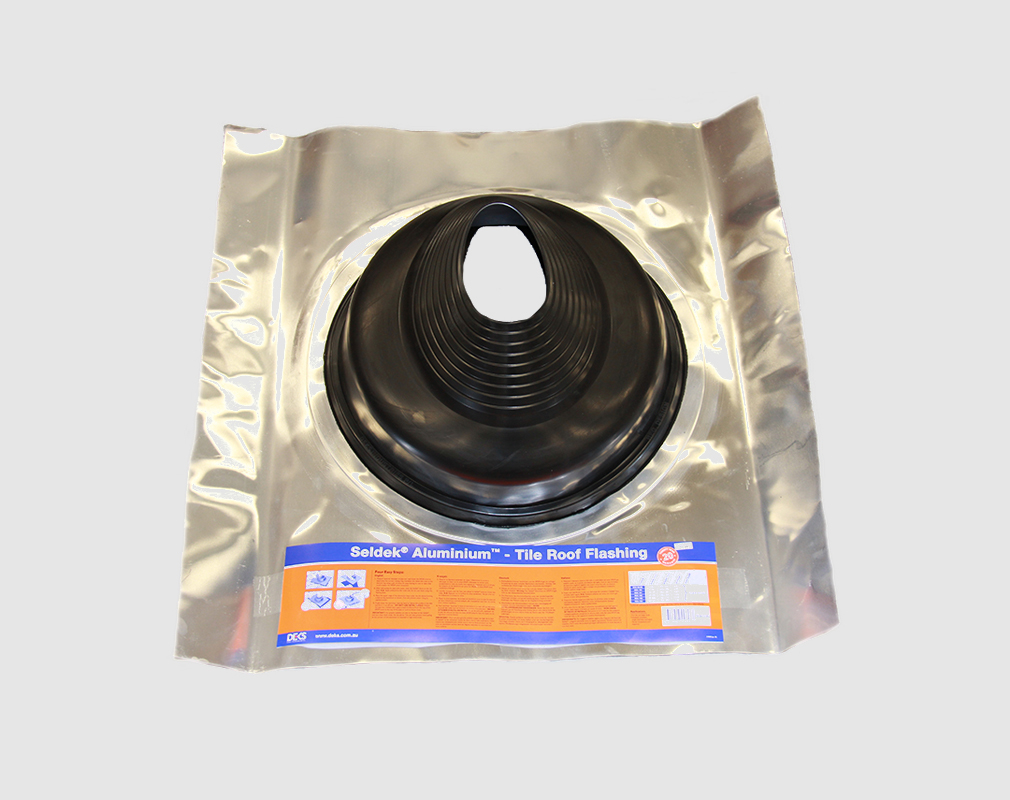

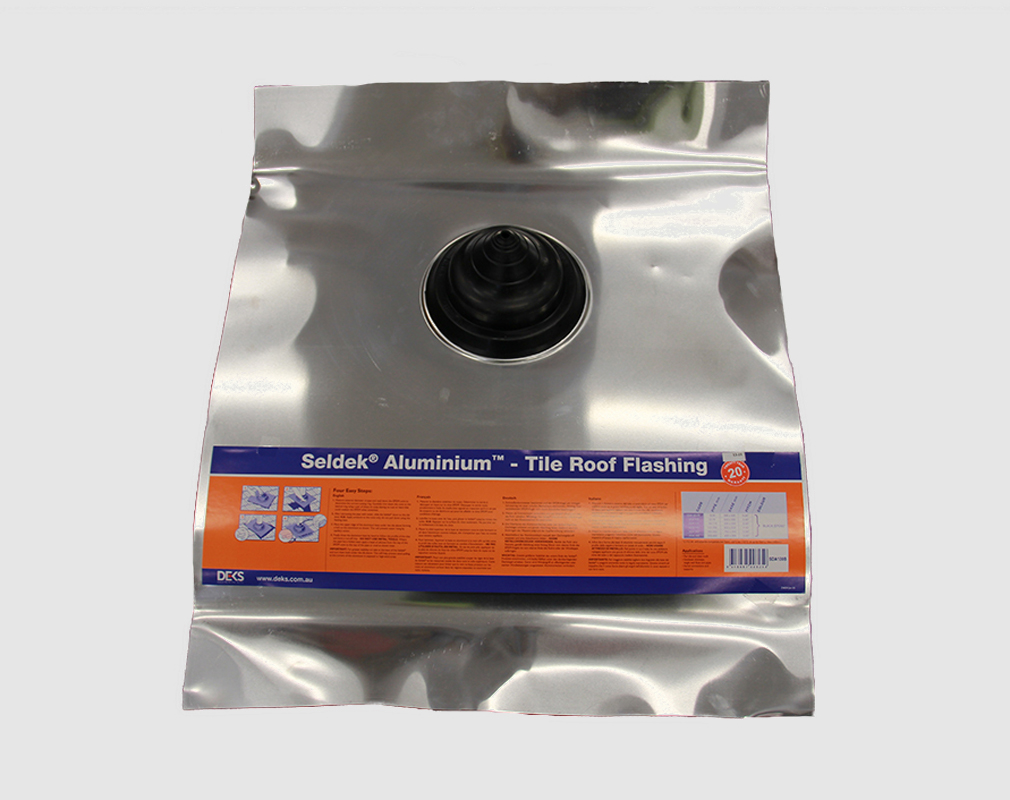

Dektite Aluminium Base

DEKS™ Dektite Aluminium Base combines the industry-leading Premium EPDM cone with a 99.9% pure grade aluminium base, making it strong, malleable, and easy to install. Lead-free and perfect for pressed metal tiles where potable water is collected.

  • Roof Pitch: 10°-45°
  • Penetration size range: up to 450mm
  • Application: metal roofs and tiles
  • Temperature range: -50˚C to 115˚C
  • Resistance: UV rated
  • Material / Colour: Black EPDM polymer rubber with pure aluminium base

Dektite polymer flashings have been tested and comply with applicable Australian and New Zealand Standards. For guidance on good flashing design and installation methods, refer to the New Zealand Metal Roof Manufacturers Association Code of Practice and NZBC E2/AS1.

Brochure

Nominal Pipe Diameter (mm)Base Size (mm)Part NumberRoof Pitch
12-70500×600SDA100B-UUp to 45°
15-170600×600SDA101B-UUp to 45°
160-300600×900SDA103BNZ-UUp to 45°
300-450956×956SDA104B-UUp to 45°
